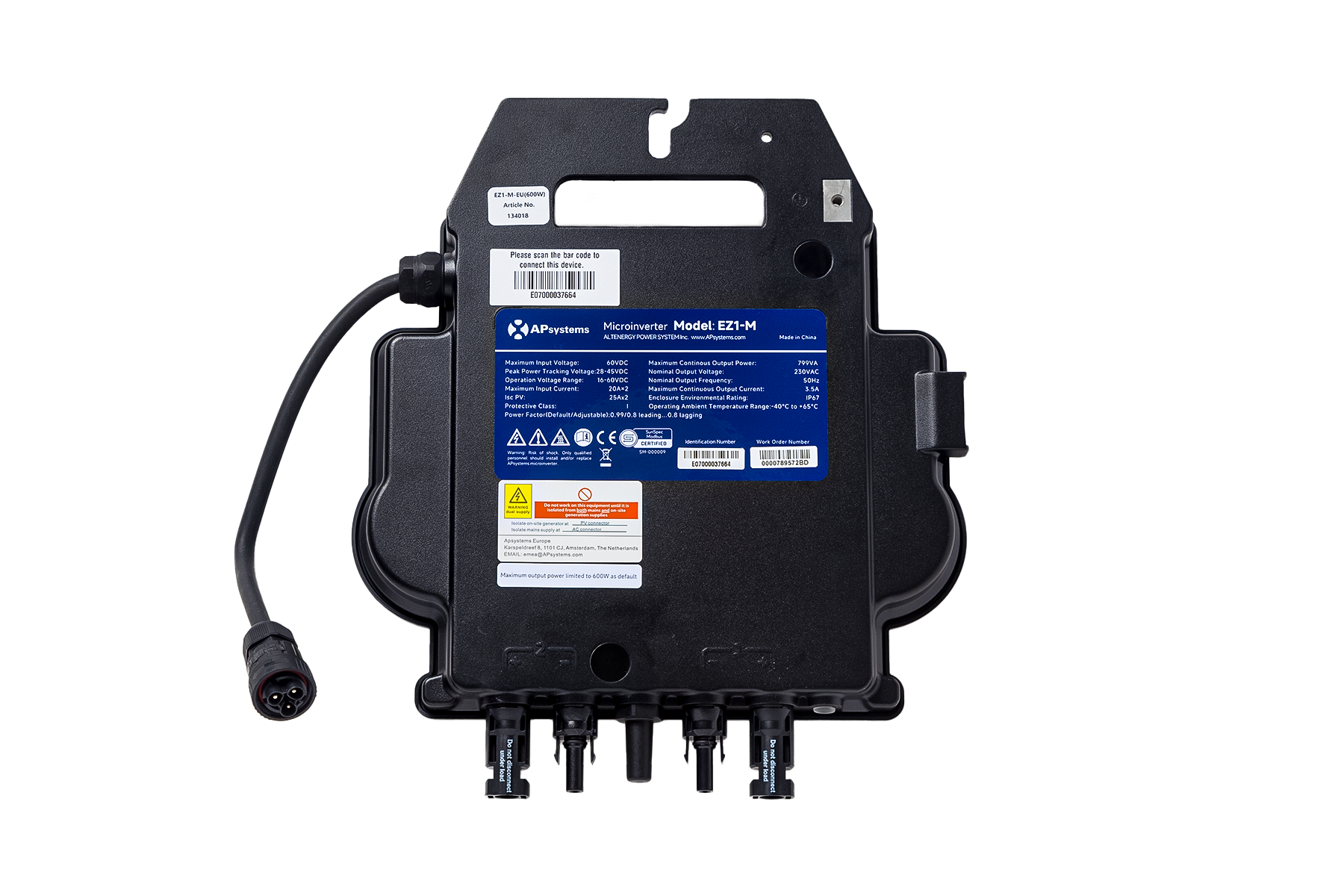

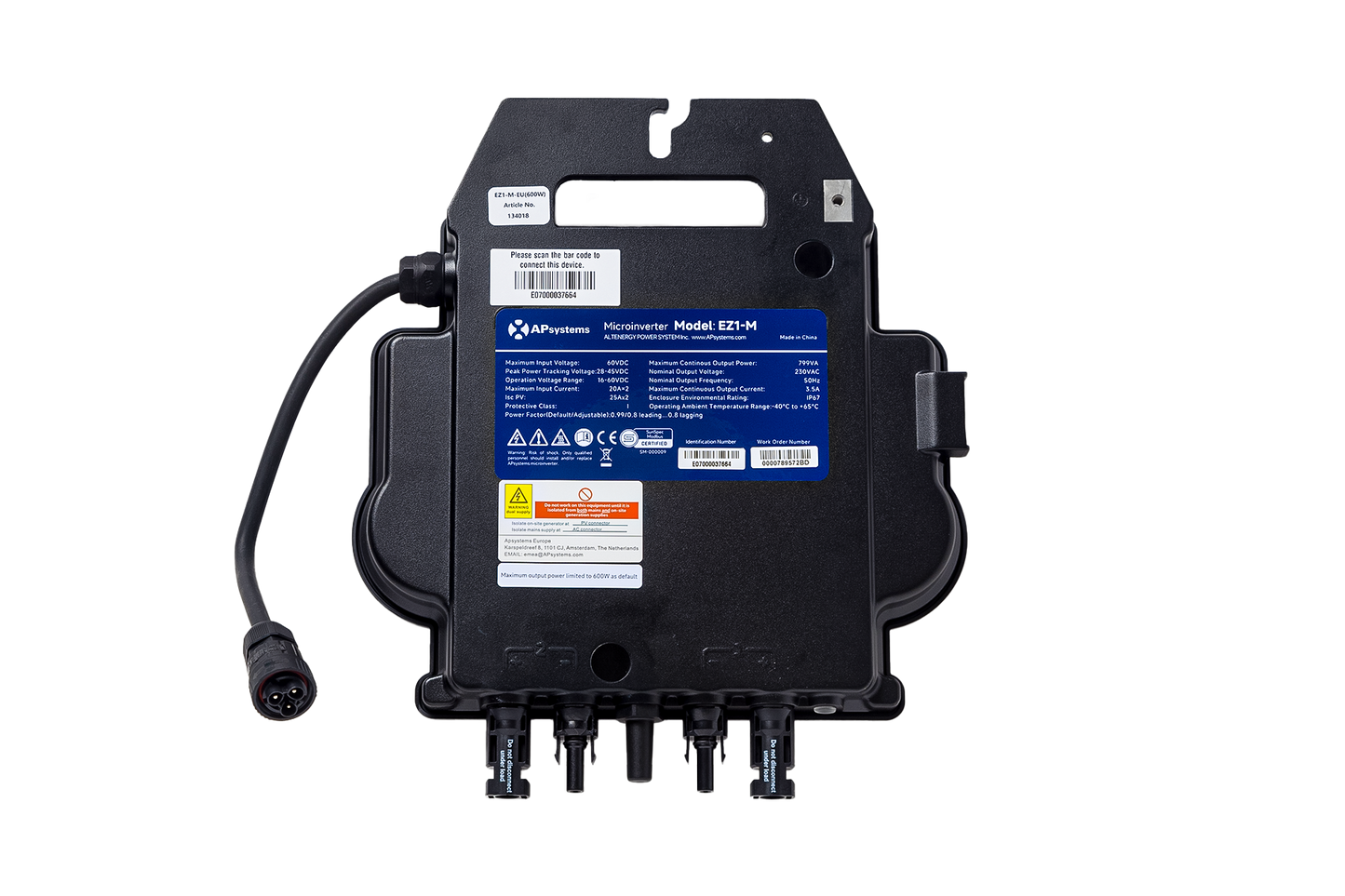

Micro-onduleur double EZ1M / 800VA / monophasé / 60-72 cellules - 132018
SKU: INVAP0005
The APS EZ1M microinverter (ref. 132018) is a ready-to-use, high-performance, and connected solution designed for single-phase residential photovoltaic installations, capable of managing two PV modules with 60 to 72 cells. With an output of... Lisez plus
Pour plus d’informations sur la disponbilité et le prix, créez-vous un compte en cliquant sur le bouton “Demander le prix"
Description du produit
Description du produit
The APS EZ1M microinverter (ref. 132018) is a ready-to-use, high-performance, and connected solution designed for single-phase residential photovoltaic installations, capable of managing two PV modules with 60 to 72 cells. With an output of 800 VA and two independent MPPTs, it maximizes energy production for each panel, even under irregular sunlight conditions or varying orientations. The EZ1M integrates Wi-Fi and Bluetooth connectivity, enabling simplified monitoring via the APsystems EMA app without the need for an external gateway. Its IP67-rated enclosure ensures excellent weather resistance, guaranteeing long-term durability outdoors. Easy to install thanks to its plug-and-play design, this microinverter is ideal for installers seeking a high-performance, quick-to-deploy solution focused on individual self-consumption.
Description technique
Description technique
Marque
AP Systems
Référence fabricant
132018
Garantie produit (ans)
12
Secteur commercial
R\u00e9sidentiel
Type d'onduleur
Micro-onduleur
Puissance (kVA)
0.8
Puissance nominale (kW)
0.8
Nombre de trackers (MPP)
2
Fonctionnement backup
No
Tension min de fonctionnement (V)
26.0
Courant d'entrée max (A)
25.0
Tension min de fonctionnement (V)
60.0
WIFI (WLAN)
Oui
Indice de protection
IP 67
Compatibilité réseau
["230V"]
Dimensions
Dimensions
Largeur
218 mm
Hauteur
36,5 mm
Longueur
263 mm
Poids
2.8 kg
Garantie
Garantie
Garantie
12
Documentation technique
Documentation technique
technical
ENECSOL - FICHE TECHNIQUE APS EZ1-M EZ1-H SERIES DIY_FR
