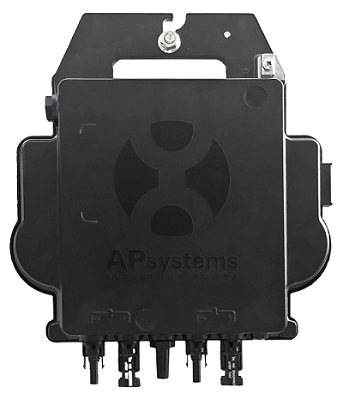

Micro-onduleur double DS3-L / 730VA / monophasé / 60-72 cellules - 118018
SKU: INVAP0001
The APS DS3-L microinverter – 730 VA is an efficient and compact solution for single-phase residential solar installations, designed to manage two PV modules with 60 to 72 cells. It integrates two independent MPPTs,... Lisez plus
Pour plus d’informations sur la disponbilité et le prix, créez-vous un compte en cliquant sur le bouton “Demander le prix"
Description du produit
Description du produit
The APS DS3-L microinverter – 730 VA is an efficient and compact solution for single-phase residential solar installations, designed to manage two PV modules with 60 to 72 cells. It integrates two independent MPPTs, ensuring optimized energy production for each panel, even in cases of partial shading or different orientations. Offering an output power of 730 VA, it is perfectly suited for low- or medium-power systems aiming to maximize self-consumption. Its IP67-rated structure ensures excellent resistance to outdoor conditions, and its quick integration via APS AC bus cable makes installers’ work easier. This model is compatible with ECU-R/ECU-C monitoring platforms, providing accurate real-time tracking. The DS3-L is a smart choice for professionals seeking a reliable, cost-effective, and easy-to-deploy solution for high-performance residential projects.
Description technique
Description technique
Marque
AP Systems
Référence fabricant
118018
Secteur commercial
R\u00e9sidentiel
Type d'onduleur
Micro-onduleur
Puissance (kVA)
0.73
Puissance nominale (kW)
0.73
Nombre de trackers (MPP)
2
Fonctionnement backup
No
Tension min de fonctionnement (V)
26.0
Courant d'entrée max (A)
22.5
Tension min de fonctionnement (V)
60.0
WIFI (WLAN)
Non
Indice de protection
IP 67
Compatibilité réseau
["230V"]
Dimensions
Dimensions
Largeur
218 mm
Hauteur
41,2 mm
Longueur
263 mm
Poids
2.7 kg
Documentation technique
Documentation technique
technical
FICHE TECHNIQUE DS3 DS3-L 2022
