Coffret 24-1841 AC/DC triphasé, onduleur réseau jusqu'à 20kVA, CTACTTDC 32-300mA Type B / 2-30-P1000-2MC4 - 24
SKU: ELERI0098
Designed for three-phase installations up to 20 kVA, this AC/DC enclosure integrates a type B 300 mA residual current protection and two protected DC strings equipped with MC4 connectors. The CTACTTDC 32-300 mA / 2-30-P1000-2MC4 model provides... Lisez plus
Pour plus d’informations sur la disponbilité et le prix, créez-vous un compte en cliquant sur le bouton “Demander le prix"
Description du produit
Description du produit

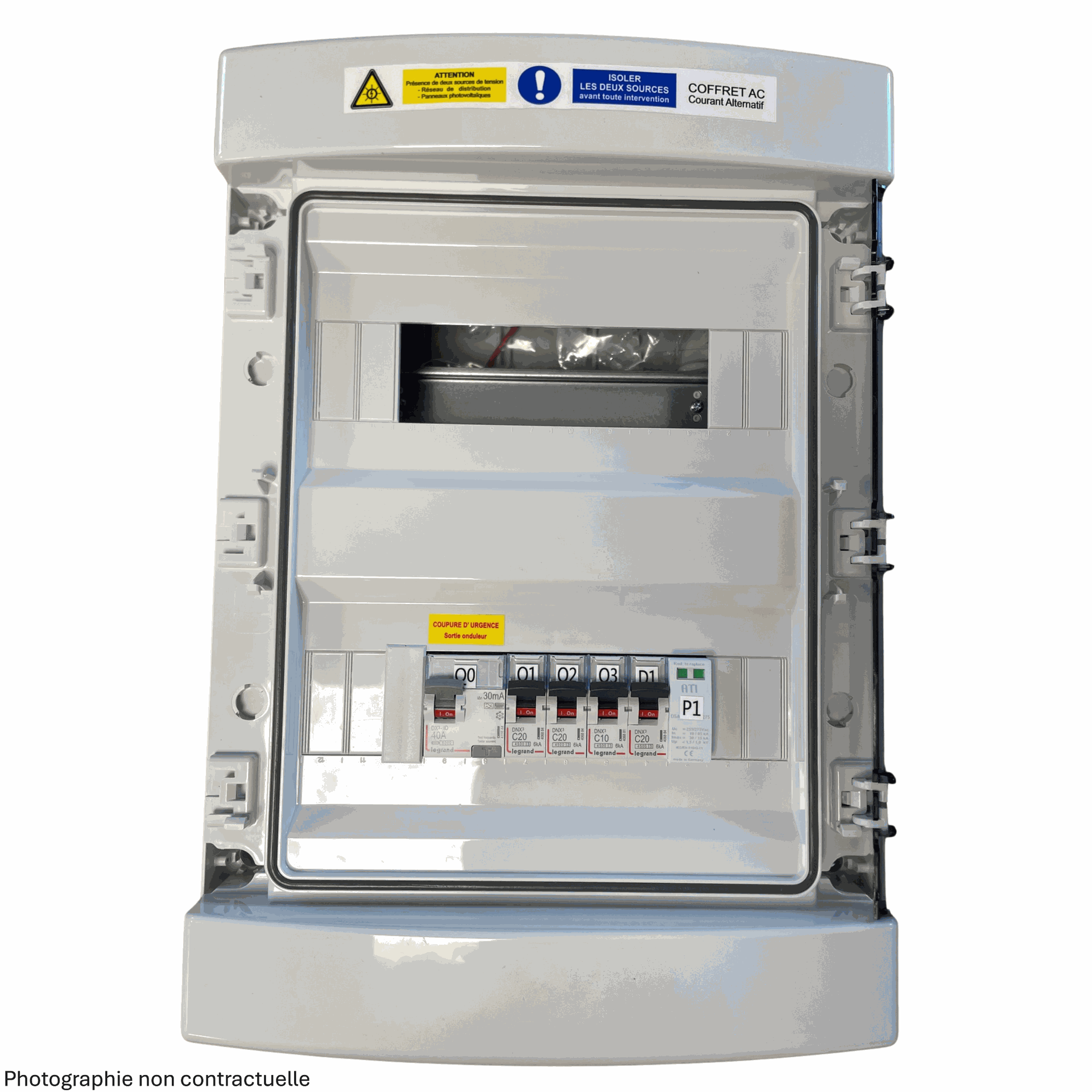

Designed for three-phase installations up to 20 kVA, this AC/DC enclosure integrates a type B 300 mA residual current protection and two protected DC strings equipped with MC4 connectors. The CTACTTDC 32-300 mA / 2-30-P1000-2MC4 model provides effective protection against insulation faults, overcurrents, and overvoltages on both circuits. Pre-assembled to save installation time, this enclosure is ideal for professional projects requiring a high level of safety and compliance.
Description technique
Description technique
Marque
Ri2E
Garantie produit (ans)
0,25
Secteur commercial
R\u00e9sidentiel
Sensibilité du différentiel principal
300
Disjoncteur AC principal
32
Interrupteur AC principal (A)
40.0
Tension parafoudre AC (V)
400
Interrupteur DC principal (A)
30.0
Dimensions
Dimensions
Largeur
418 mm
Hauteur
436 mm
Longueur
148 mm
Poids
6.5 kg
Garantie
Garantie
Garantie
0,25
