Coffret 24-0967 AC/DC triphasé, 2MPPT onduleur réseau jusqu'à 10kVA, CTACTTDC 20-30mA Type ASI /2-20-1000-1MC4 - 24
SKU: ELERI0097
This three-phase AC/DC box is designed to protect a photovoltaic installation with a three-phase inverter up to 10 kVA and 2 MPPT inputs. It includes a type ASI 30 mA differential protection on the AC side... Lisez plus
Pour plus d’informations sur la disponbilité et le prix, créez-vous un compte en cliquant sur le bouton “Demander le prix"
Description du produit
Description du produit

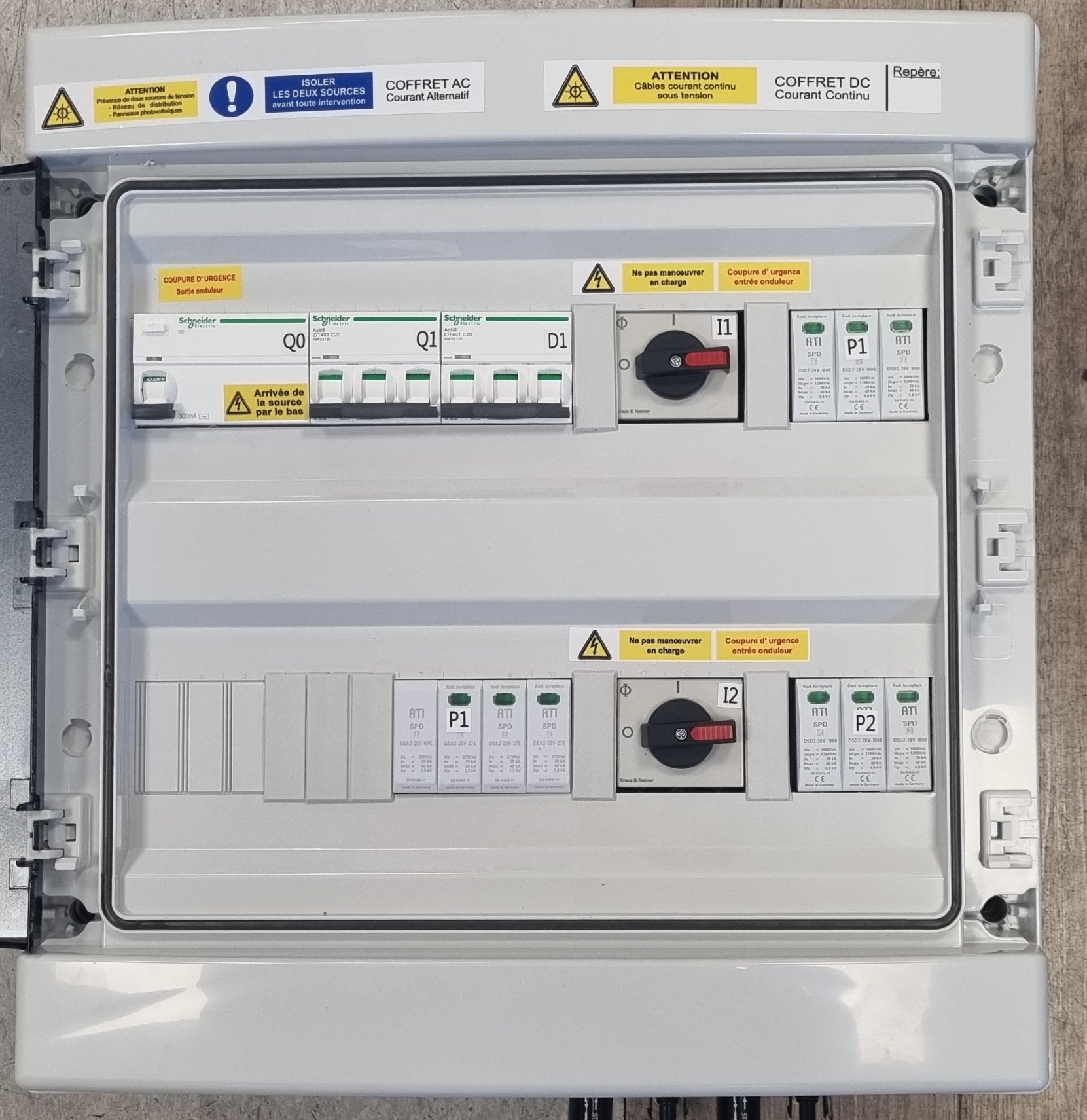

This three-phase AC/DC box is designed to protect a photovoltaic installation with a three-phase inverter up to 10 kVA and 2 MPPT inputs. It includes a type ASI 30 mA differential protection on the AC side and two independent DC protections with MC4 connectors for quick installation. The CTACTTDC 2x20-1000-1MC4 model ensures optimal safety on both the AC and DC sides while complying with electrical standards. Compact, pre-wired, and ready to install, it is perfectly suited for medium-sized residential or tertiary projects.
Description technique
Description technique
Marque
Ri2E
Garantie produit (ans)
0,25
Secteur commercial
R\u00e9sidentiel
Sensibilité du différentiel principal
30
Disjoncteur AC principal
20
Interrupteur AC principal (A)
25.0
Tension parafoudre AC (V)
400
Interrupteur DC principal (A)
20.0
Tension parafoudre DC (V)
600
Dimensions
Dimensions
Largeur
418 mm
Hauteur
436 mm
Longueur
148 mm
Poids
6.3 kg
Garantie
Garantie
Garantie
0,25
