Coffret 12144 AC/DC monophasé 2T(2E/1S 600Vdc 25A PF 4.5kW)
SKU: ELEDE0048
The MCPV single-phase 2T (ref. 12144) is a photovoltaic protection box designed for single-phase systems up to 4.5 kW, operating at a maximum voltage of 600 Vdc with a nominal current of 25 A.... Lisez plus
Pour plus d’informations sur la disponbilité et le prix, créez-vous un compte en cliquant sur le bouton “Demander le prix"
Description du produit
Description du produit

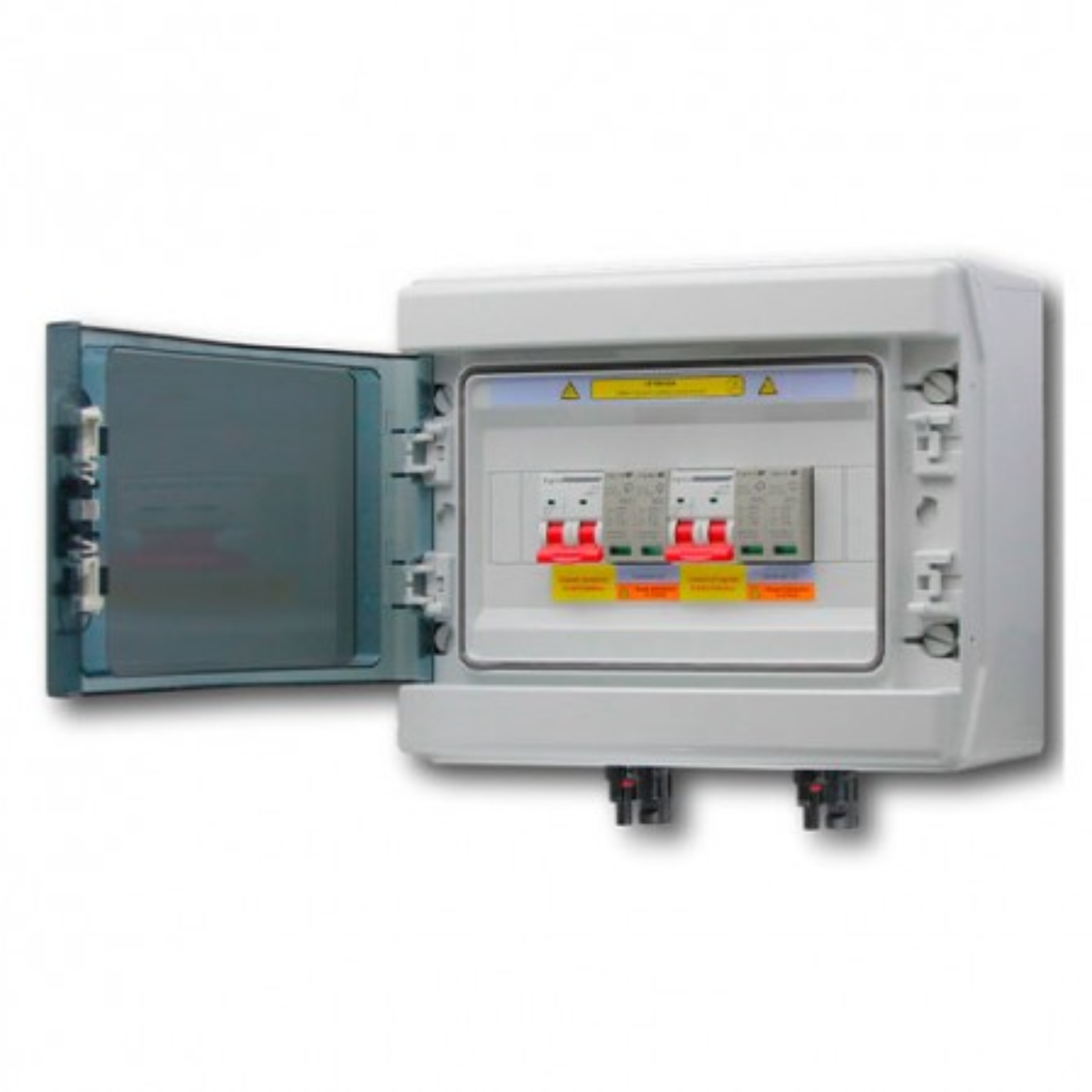

The MCPV single-phase 2T (ref. 12144) is a photovoltaic protection box designed for single-phase systems up to 4.5 kW, operating at a maximum voltage of 600 Vdc with a nominal current of 25 A. With a configuration of two inputs and one output (2I/1O), this device ensures effective protection against overloads, short circuits, and insulation faults. Manufactured according to current electrical standards, it offers optimal durability, safety, and performance, making installation and maintenance easier in residential and commercial photovoltaic projects. Compact and robust, it perfectly meets the requirements of professional installers.
Description technique
Description technique
Marque
Digital Electric
Référence fabricant
12144
Secteur commercial
R\u00e9sidentiel
Différentiel principal
Type F
Sensibilité du différentiel principal
30
Disjoncteur AC principal
20
Interrupteur AC principal (A)
40.0
Tension parafoudre AC (V)
320
Interrupteur DC principal (A)
25.0
Tension parafoudre DC (V)
600
Dimensions
Dimensions
Largeur
310 mm
Hauteur
145 mm
Longueur
436 mm
Poids
4.49 kg
